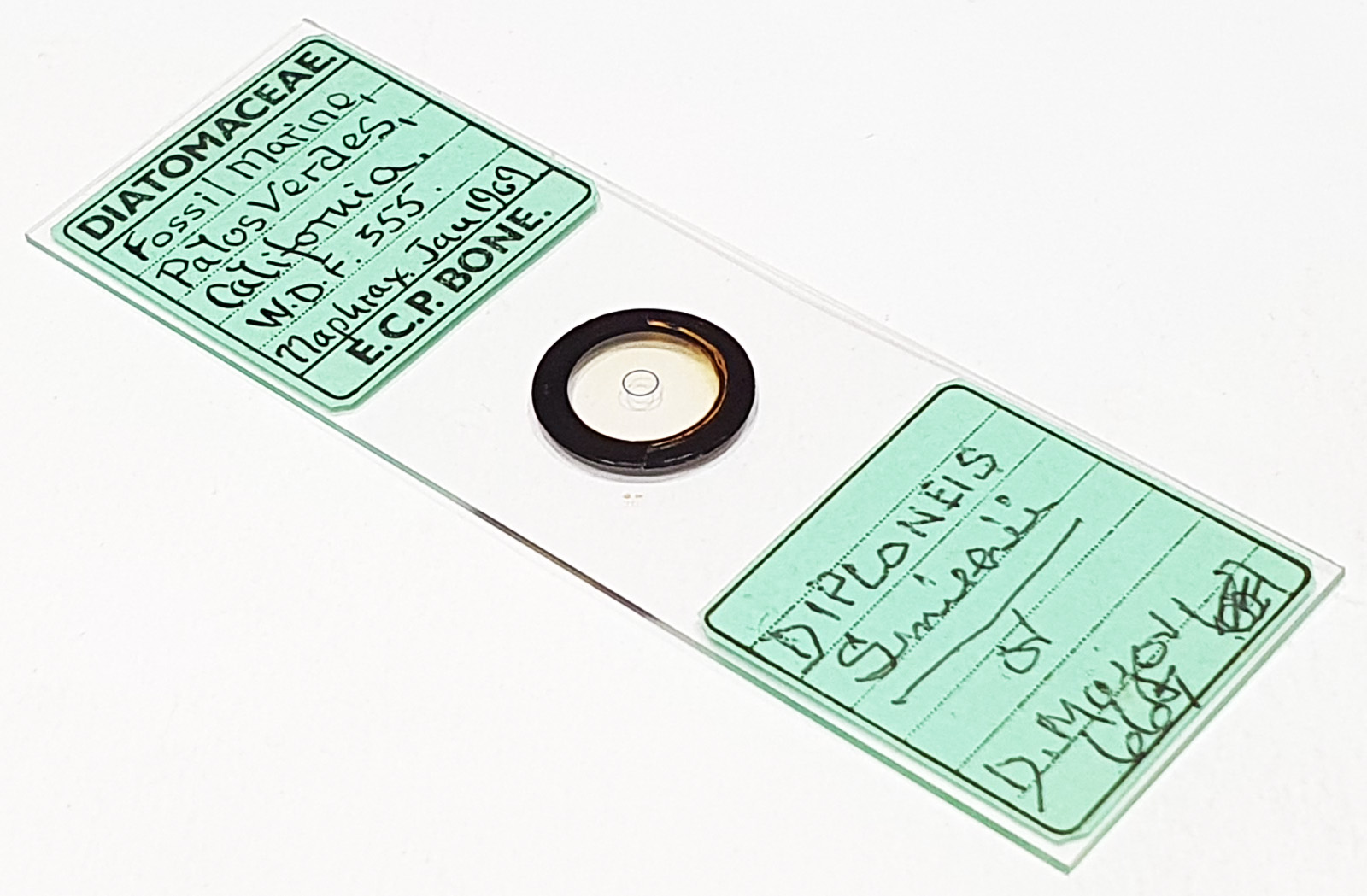

Diploneis smithii (or D. major) from Palos Verdes, California, USA. Single example on the slide. W.D.F. 355. Mounted in Naphrax and dated January 1969. Prepared by ECP Bone. Olympus BHB microscope using 450nm LED light. 63x Leitz Pl Apo 1.4 objective, oil immersion. Olympus Aplanat Achromat condenser, oil immersion, oblique lighting. 2.5x Nikon CF PL photoeyepiece. Monochrome converted Nikon d850 camera. 30 images stacked in Zerene (Pmax).
Diploneis smithii (Brébisson) Cleve 1894. Published in: Cleve, P.T. (1894). Synopsis of the naviculoid diatoms. Part I. Kongliga Svenska Vetenskapsakademiens Handlingar Series 4 26(2): 1-194, 5 pls. Page 96.
Diploneis major Cleve 1894. Published in: Cleve, P.T. (1894). Synopsis of the naviculoid diatoms. Part I. Kongliga Svenska Vetenskapsakademiens Handlingar Series 4 26(2): 1-194, 5 pls. Page 96, no figure. This name is currently regarded as a synonym of Diploneis smithii var. major (Cleve) Tempère & Peragallo.
