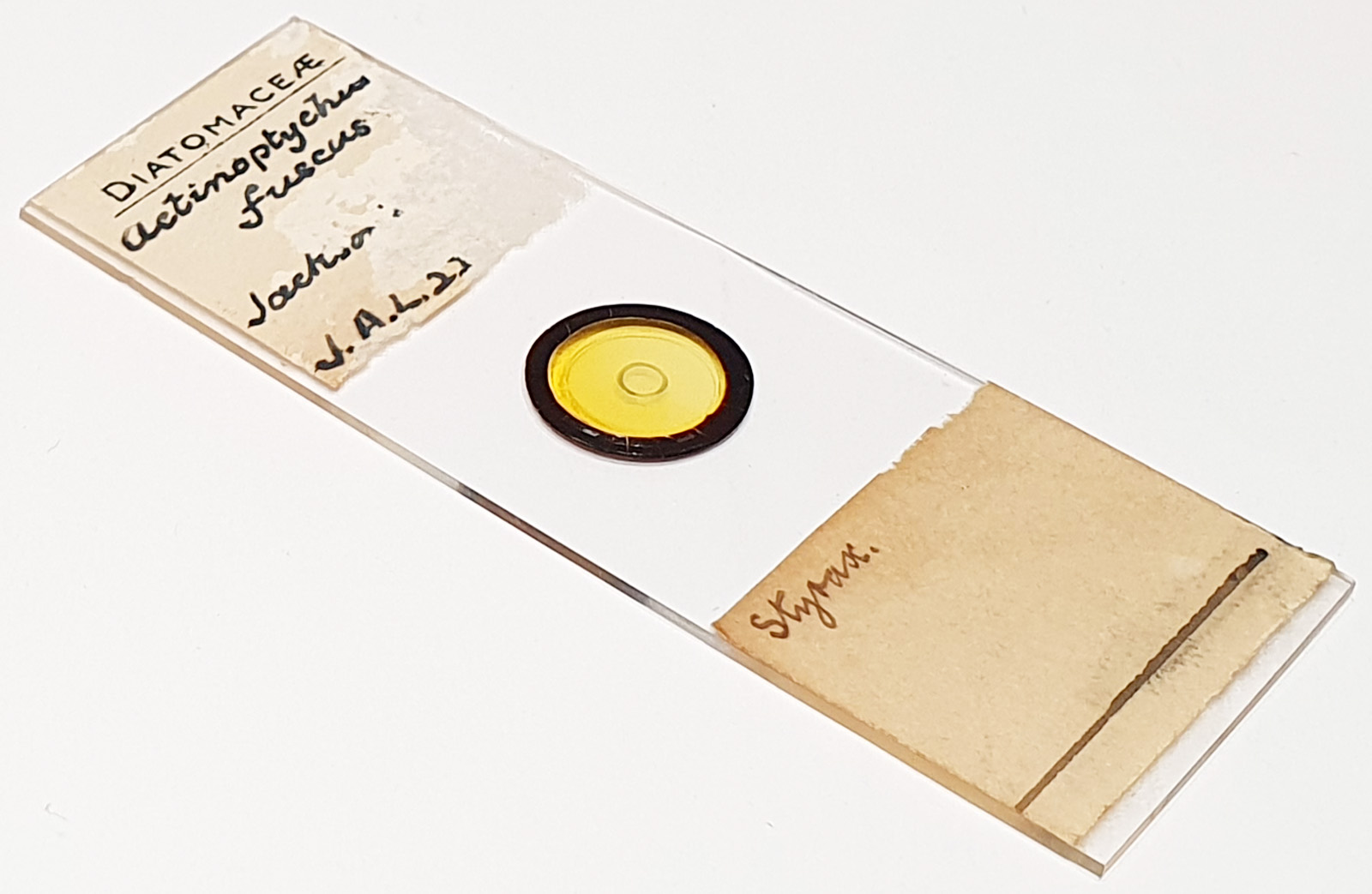

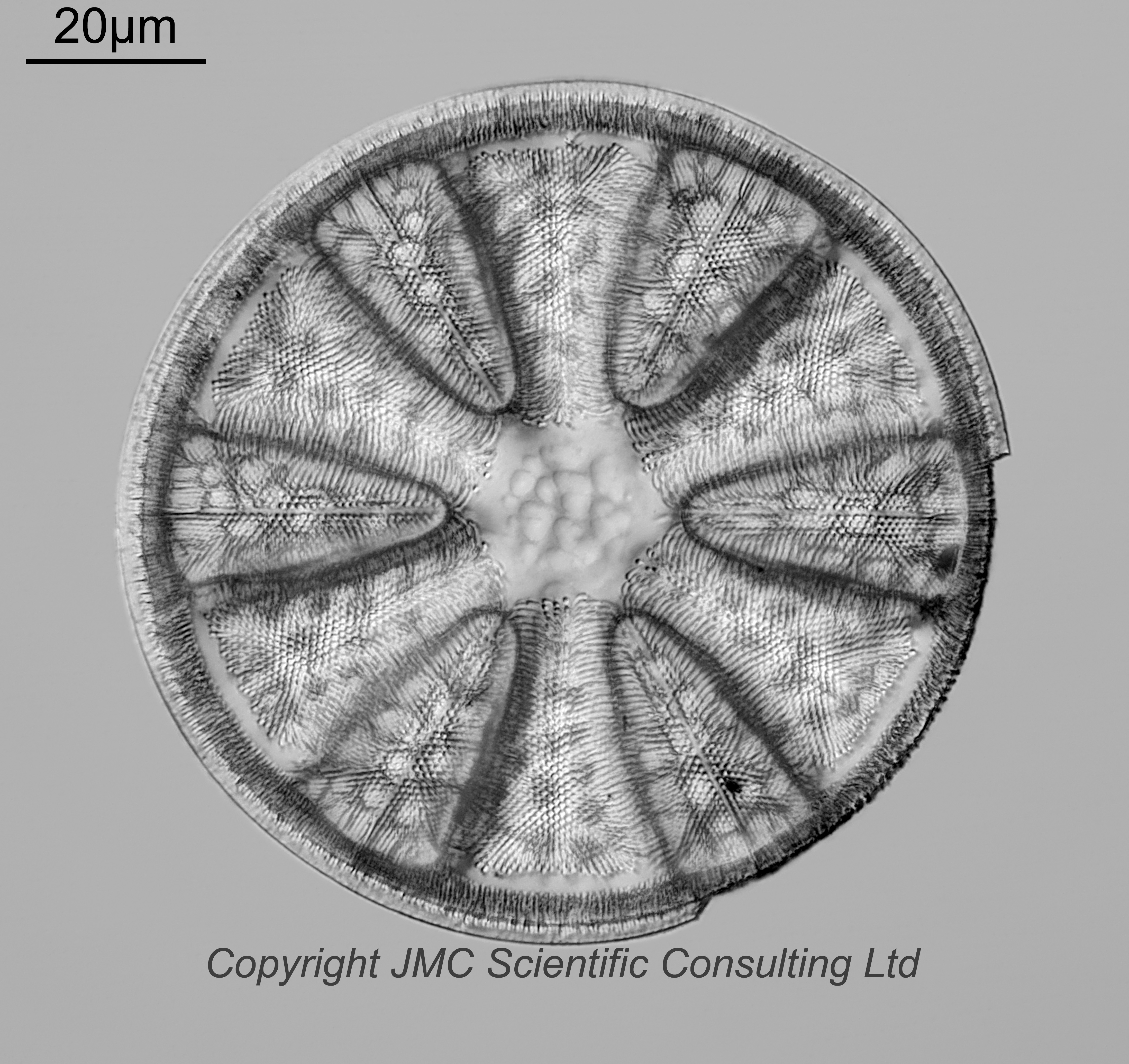

Actinoptychus fuscus from Jackson’s Paddock, Oamaru, New Zealand. Single example on the slide mounted with the rim upwards towards the coverslip. Prepared by JA Long. Olympus BHB microscope using 450nm LED light. 63x Leitz Pl Apo 1.4 objective, oil immersion. Olympus Aplanat Achromat condenser, oil immersion, oblique lighting. 2.5x Nikon CF PL photoeyepiece. Monochrome converted Nikon d850 camera. 53 images stacked in Zerene (Pmax).
Actinoptychus fuscus Grove & Sturt 1888. Published in: Schmidt, A.[W.F.] (1888). Atlas der Diatomaceen-kunde. Series III: Heft 33-34 [“Heft 29-30”]. pp. pls 129-136. Aschersleben: Verlag von Ludwig Siever. Plate 132, Figure 21.
